Condition 100% Brand New
CPU: 144 MHz
Main Frequency: 1M Flash Bit, 128KB for SRAM
Fingerprint Reader: Capacitor Collection
Fingerprint Size: 192X192 (pixels), 508 dpi
Fingerprint registration capacity: 1000 by default, which can be increased to 5000
Fake Identification Rate (Far) Less than 0.001%
Deviation Percentage (fRR) Less than 0.1%
Fingerprint size: 570 bytes
Security level settings: from level 1 tolevel 5. The default value is Level 3
Processing speed: fingerprint extraction time Less than 0.45 seconds
Communication Interface: UART, level 3.3 V-TTL or usb connection
Serial Communication parameters:
Parity = No; 1 stop bit = 1
Flow Control = None
Transmission Speed: 9600, 19200, 38400, 57600, 115200 (bps
Operating voltage: DC 3.3 V ± 10%
Working current: less than 30 mA, and the maximum value of fingerprint collection is less than 80 mA (instantaneous current)
Inactivity Current: Less than 10uA
Working Environmental Protection:
Operating Temperature: -10 Celsius -60 Celsius
Relative humidity: 20% -80%
Colour:black
Material:plastic

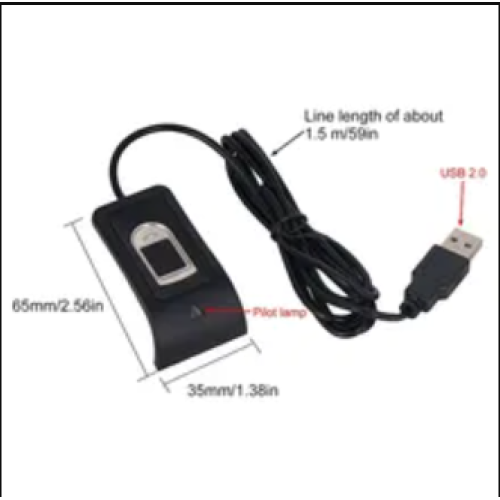

Size:about 10*5*3cm
Package Contents:
1*Fingerprint register
